The multi-fixed-bed bioreactor “Multiferm” provides a downscaled system for the development of fixed-bed processes with immobilized microorganisms or cells. It consists of twelve single fixed-bed units that can be operated independently. Different bacterial strains, carriers used for immobilization, media or flow rates can be studied in one compact experimental set-up. Experiments can be run in parallel to allow for determination of experimental errors. In these studies several continuous cultivations were carried out with Lactobacillus delbrueckii ssp. bulgaricus using different dilution rates and culture durations as proof-of-concept for the Multiferm. Parameters relevant for process design such as reproducibility of simultaneously performed cultures, optimal dilution rate and long-term performance were determined by means of volume specific lactate and biomass productivity. First indications on a reduced growth rate of the cells due to immobilization were found.

Keywords: Cell density, continuous cultivation, dilution rate, experimental error, fixed-bed, lactic acid bacteria, metabolic activity, process development, scale-down.



INTRODUCTION

The main advantage of the cultivation of bacteria in fixed-bed bioreactors is cell retention [1] but there are also other promising aspects like higher enzyme activity, higher pH and temperature stability [2] as well as higher plasmid stability and higher rate of correctly folded proteins [3-5] in recombinant bacterial strains. Fixed-bed reactor systems have a reduced system complexity, which reduces costs. The continuous operation or at least prolonged cultivation period due to higher stability increases productivity [3, 6-8].

There have been numerous reports on immobilized lactic acid bacteria (LAB) for production of lactic acid, starter cultures, bacteriocins (e.g. nisin) and aromatic compounds under high volumetric productivity compared to suspension cultivation [3, 5, 9-13]. One reason for this is the application of dilution rates that are several times higher than the maximum specific growth rate during exponential growth [6, 12, 14]. Nevertheless, the number of industrial fixed-bed processes is quite small because of the lack of process development tools for fixed-bed processes.

Regarding the previously mentioned advantages for fixed-bed reactors as well as the potential of lactic acid bacteria it is obvious that there is a requirement for a specific process development tool. Therefore, a downscaled, cost-efficient multiple fixed-bed reactor system was developed. This reactor system allows the fast generation of cultivation data because of its twelve single fixed-beds. By this, it is possible to use different bacterial strains, carriers, media or flow rates in one compact experimental setup. Furthermore, immobilization procedures and required time for stable running can be investigated in this system by stopping cultivation at different points of time.

The objective of the present study was to determine parameters relevant for design of fixed bed processes such as reproducibility, optimal dilution rate and long-term performance. Lactobacillus delbrueckii ssp. bulgaricus was used as model system.

MATERIALS AND METHODS

Multi-fixed-bed Bioreactor Multiferm

The multiple bioreactor system Multiferm (medorex e.K., Nörten-Hardenberg, Germany) consists of twelve single fixed-bed units, each with a working volume of 10 mL. All twelve are placed in a 1.5 L conditioning vessel (see Fig. 1). The fixed-bed units and the conditioning vessel are made of Duran glass, the lid and the connections consist of the autoclavable and resistant organic polymer polyether ether ketone (PEEK). Within a fixed-bed unit (see Fig. 2). The carriers are packed between two PEEK discs with equal perforations for uniform liquid distribution within the reactors. The liquid flows from bottom to top for easy release of process gasses. The Multiferm system is provided with temperature (between 5 - 60 ºC), pH (between 3 - 10) and aeration (between 0.1 - 1 L/h) controls. It is further equipped with pumps, which can dispense fluids with flow rates between 0.15 - 3 mL/min.

Fig. (1).

The Multiferm multi-fixed-bed fermenter system. Middle: Conditioning vessel with the 12 single fixed-bed units. Left: Process control system WinErs. Right: Control unit for feed, harvest, pH, aeration and temperature (medorex e.k., with kind permission).


Carrier Material

For immobilization VitraPOR® carriers from Robu Glasfiltergeräte GmbH (Hattert, Germany) were used. They are made of sintered borosilicate glass and are therefore autoclavable and resistant against chemicals. VitraPOR® is spherical in shape with an average diameter of 4 mm (Fig. 3) and has a porosity of 36 %, while the inner surface is 0.13 mm2/g.

Bacterial Strain

The experiments were performed with Lactobacillus delbrueckii ssp. bulgaricus (L. bulgaricus), which is an anaerobic, non-motile and non-spore forming lactic acid bacterium. Its growth conditions are: temperature 40 - 44 °C, low pH from 4.6 to 6, complex nutrition. This strain is obligatory homofermentative producing no CO2 but D-lactate exclusively. Its maximum specific growth rate µmax in shaking flask cultivation (40 °C, Difco Lacto-bacilli MRS Broth with initial pH of 6, data not shown here) was determined to be 0.39 1/h and it has qLac,batch = 2.6 10-12 g/(cells.h), which is the cell specific lactate production rate in batch suspension cultivation. For the latter, the produced lactate ∆cLac. [g/L] was divided by the formed biomass ∆X [cells/L] as well as the duration of the exponential phase ∆t [h].

Cultivation

All cultivations were carried out at a temperature of 40 °C using complex MRS medium containing 20 g/L glucose with an initial pH of 6. Within the fixed-bed the pH was not controlled.

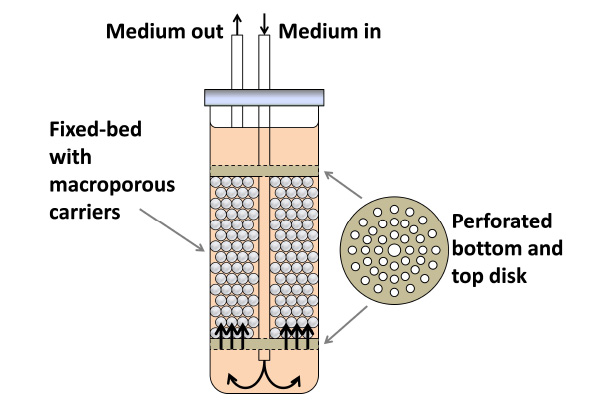

Fig. (2).

Scheme of a fixed-bed unit.


Preculture in Suspension

For cultivation in the Multiferm a preculture has to be prepared. Therefore, a cryoculture of 1.5 mL containing 1·109 cells was incubated at 40 °C for 14 to 16 h in 50 mL MRS medium. Then, fresh MRS medium was inoculated with 10 % [v/v] inoculation volume of the preculture and incubated under same conditions until a cell density of 1·109 cells/mL was reached. This second culture was centrifuged at 4,500·g. The cell pellet was resuspended in one fifth of the initial volume.

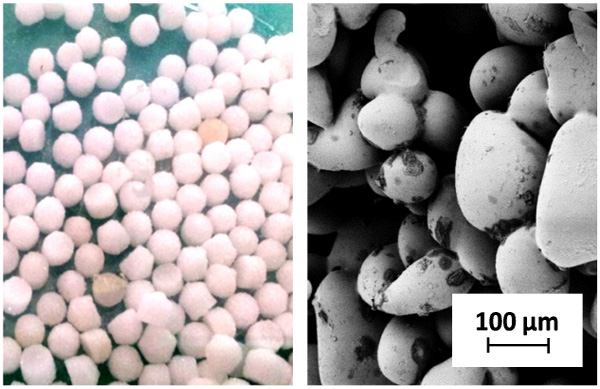

Fig. (3).

Top: VitraPOR® carrier with a diameter of 4 mm. Bottom: SEM image with 250-fold magnitude (scale is 100 µm).


Inoculation and Start up of Fixed-bed

Each of the 10 mL fixed-bed reactors was filled with 10 mL of the cell suspension obtained as described in the previous section and incubated for 14 h at 40 °C to let the bacteria settle within the fixed-bed carriers. Afterwards, supernatant was removed and the perfusion was started with fresh medium using a dilution rate D of 0.67·µmax (= 0.26 1/h), which was increased after 24 h.

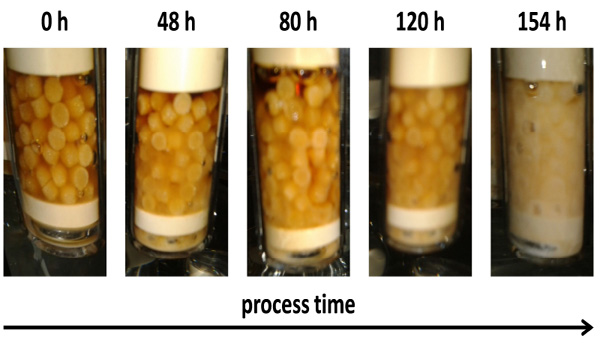

Fig. (4).

Carrier colonization during cultivation of L. bulgaricus in multi-fixed-bed fermenter system over 154 h.

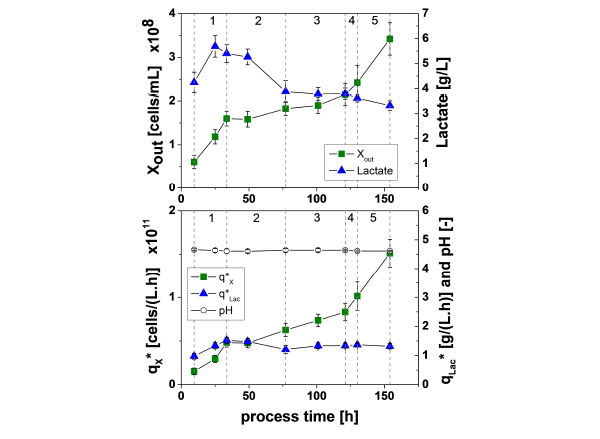

Fig. (5).

Cultivation of L. bulgaricus in the Multiferm to test reproducibility of the system under different dilution rates (1: D = 0.67·µmax, 2: D = 0.75·µmax, 3: D = 1.00·µmax, 4: D = 1.10·µmax, 5: D = 1.20·µmax). Two times six fixed-bed units were run (n = 12 in total). Data points represent means ± standard deviation. Conditions: MRS medium (initial pH of 6), 40 °C.


Analytics

All samples were withdrawn from the inlet and the outlet flow of a fixed-bed unit and analyzed as described in the following on biomass, substrate (glucose) and product (lactate) concentrations. These concentrations were used to calculate volumetric productivities.

Cell Density

The growth of L. bulgaricus was monitored by measuring the optical density (OD) at a wave length of 600 nm with a spectrophotometer (V-1200, VWR International, Darmstadt, Germany) in polystyrene semi-micro cuvettes (Sarstedt, Nümbrecht, Germany). Additionally, bacteria were counted with a Neubauer improved hemocytometer with 0.02 mm depth to estimate the correction between OD and cell density X [cells/L] to be:

Lactate and Glucose Concentration

Samples were taken at the inlet and outlet of each fixed-bed unit to determine lactate and glucose concentration. This was done via HPLC (Kontron Instruments, Kontron HPLC 332 UV detector, RID-6A Shimadzu infrared detector, BioRad Aminex HPX-87H column, 5 mM H2SO4 as eluent).

Viability

Live cell percentage was determined by two methods. The first one was the staining of cells with Acridine orange/Propidium iodide (AO/PI) solution (1 g/L AO and 0.07 g/L PI in PBS). Therefore, the cell suspension was diluted with PBS to obtain a cell density of approximately 5·108 cells/mL. A 1:1 mixture of cell suspension and AO/PI stain solution was incubated at room temperature for 2 min. The stained cells are then pelleted by centrifugation at 14,000·g for 2 min. The pelleted cells are resuspended in PBS and centrifuged again. Finally, resuspended cells were analyzed via fluorescence microscopy. Viable cells appear green and dead cells red when excited with blue and green light, respectively.

The second method was the determination of colony forming units (CFU) by plating out a dilution series of cell suspension on MRS agar plates. The difference between cell density of the cell suspension determined by measuring the OD and the CFU gives the amount of dead cells in the suspension.

Calculations for the Fixed-bed Reactor

The volume specific biomass productivity of the fixed-bed reactor q*X was calculated from

with X out. as suspended cell concentration in the harvest stream in [cells/L] and dilution rate D [1/h]. The latter is the ratio of fluid flow [L/h] and fixed-bed volume [L].

The volume specific lactate productivity q*Lac was calculated from

with the lactate concentration in the feed cLac,in. and in the harvest cLac,out.. The concentration of immobilized cells XFB,est was estimated as

with the cell specific lactate productivity in batch suspension culture qLac,batch..

RESULTS AND DISCUSSION

One of the major characteristics of fixed-bed reactor systems is the simple design and the low complexity. In contrast to stirred suspension reactors, which are considered to be homogeneously mixed, fixed-bed reactors have gradients along the height for all parameters like concentrations of biomass, substrate and product. Also the pH value shifts as it is not controlled in these systems.

The dilution rate is an important parameter for every kind of continuous cultivations because it is correlated with the volumetric productivity. Especially for fixed-bed cultivations with their simple design and low complexity, the dilution rate is the only parameter to be varied during a running cultivation.

Impact of Dilution Rate and Consistency of Experiments

To investigate the impact of dilution rate on cell growth and activity within the fixed-bed, and the consistency (reproducibility) of experiments, two set-ups were run with six fixed-bed units each time. The dilution rate was increased stepwise from 0.67·µmax to 1.2·µmax, corresponding to values of D = 0.26 1/h to 0.47 1/h. In particular dilution rates similar or higher as the maximum growth rate are important to judge the stability of the fixed-bed, as for continuous chemostat cultures with suspended cells washout of cells occurs at these high dilution rates. In total, the Multiferm was run for 154 h in this experiment.

An example for the time course of colonization of the carriers within the fixed-bed units is shown in Fig. (4). Especially between 120 h and 154 h of process time the formation of the biofilm increased drastically. At t = 154 h the carriers are completely covered with cells. At this point in time the dilution rate was already D = 1.2·µmax. As no washout of cells occurred, the stability of the fixed-bed system is confirmed.

The time course of cell (Xout) and lactate concentration and pH at the outlet of the fixed-bed units (harvest flow) as well as the volume specific productivities (q*) are given in Fig. (5).

For perfusion of each fixed-bed unit fresh MRS medium with a pH of 6 was used. The activity of the immobilized cells led to a pH shift to 4.6 at the outlet already at the first sampling at 9.5 h of fermentation. From that on pH was constant in the following course of cultivation.

The system shows a good stability since the pH at the outlet and the volumetric specific lactate productivity q*Lac was nearly constant throughout the cultivation. The reproducibility of the system between different experiments and between different fixed-bed units is good since the standard deviation is 13 % at the most for all concentrations and productivities. Furthermore, it can be seen that at higher dilution rates the cell concentration in the outlet rises up to 3.5·108 cells/mL and the lactate concentration decreases at the most from 5.7 g/L to 3.3 g/L due to dilution effects.

It seems that the higher dilution rates of D = µmax to D = 1.2·µmax lead to a better supply of the cells because more cells are in the outlet whilst the lactate productivity is stable at 1.4 g/(L.h).

Long-term Cultivation

In the before mentioned experiment the dilution rate was increased stepwise in relatively short time intervals. In the following an experiment is described, where the dilution rate was fixed to D = µmax during a period of 300 h (Fig. 6). Two fixed-bed units were run in parallel.

All determined parameters reached constant values after approx. 150 h. Therefore, this experiment underlines the long-term stability of the fixed-bed system even at high dilution rates.

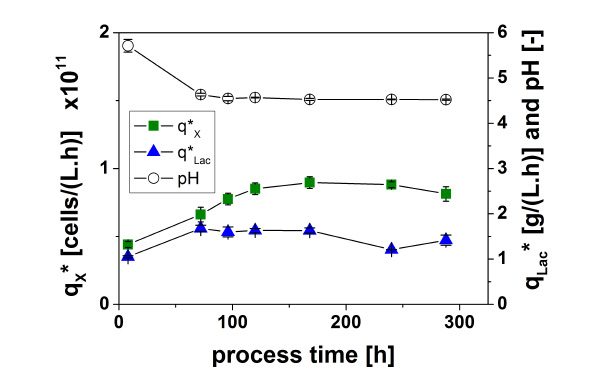

Fig. (6).

Cultivation of L. bulgaricus in Multiferm system with constant dilution rate (D = 0.39 1/h = µmax). Conditions: MRS medium (intial pH of 6), 40 °C, 2 fixed-bed units (n = 2). Data points represent means ± standard deviation.


Interestingly, the pH reaches again the final value of 4.6 only at the second sampling after 72 h of fermentation for unknown reasons.

The biomass in a fixed-bed reactor cannot be determined by sampling during the cultivation. An approach to estimate the number of immobilized cells is to assume a cell specific lactate production rate similar to the production rate in suspension. In that case the cell concentration can be calculated by dividing the volume specific lactate productivity (in g/(L.h)) by the cell specific lactate productivity from suspension culture (in g/(cell.h)) (see above). For the cultivations shown in Fig. (6), the estimated cell concentration XFB,est varied between 4 to 6·108 cells/mL, if 2.6·10-12 g/(cell.h) as cell specific lactate production rate qLac,batch. from batch suspension cultivation was assumed.

At the end of this experiment the cells were detached from the carriers by ultrasonic sound (Bransonic bath 221, 15 s), followed by vortexing for maximal 5 s to avoid abrasion of the carriers. The optical density of the received cell suspension was measured and gave 1.89·109 cells/mL as real cell density in the fixed-bed. A viability test by plating the cell suspension on MRS agar plates resulted in a viability of 74 %, which is the same as for chemostat processes with L. bulgaricus under same conditions (MRS medium, 40 °C).

Assuming that no drastical shift in metabolism occurs, the difference of factor ten between estimated and real biomass in the fixed-bed under same viability could be a reduced growth rate.

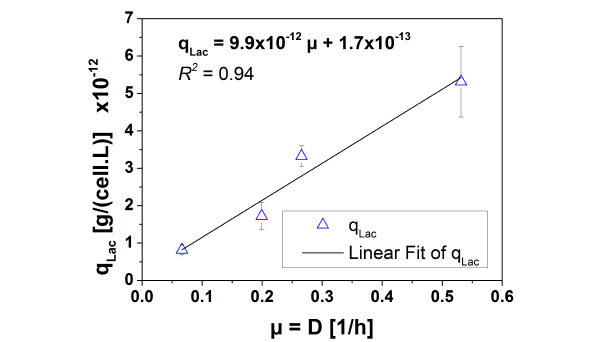

Fig. (7).

Correlation between cells specific lactate productivity and specific growth rate during chemostat cultivation of L. bulgaricus. Conditions: MRS medium (intial pH of 6), 40 °C, 500 mL. Data points represent means ± standard deviation (n = 2-10 per dilution rate).


Influence of Immobilization on Growth Rate

The results of the long-term cultivation in the previous section gave first indications that L. bulgaricus cells change the growth rate in immobilized state. The detachment of cells at the end of the long-term cultivation showed that the real biomass is approximately one magnitude higher than the calculated one. The estimation is based on the cell specific lactate productivity of cells cultivated in suspension. Chemostat cultivation of L. bulgaricus under same conditions regarding temperature, pH and medium (see Fig. 7) showed a linear correlation between growth rate of cells and the cell specific lactate productivity to be:

Since the real cell density XFB,real at the end of the long-term cultivation is known to be 1.89·109cells/mL and the average volume specific lactate productivity q*Lac is 1.5 g/(L.h), the cell specific lactate productivity qLac. can be calculated to be 0.79·10-12 g/(cell.h) for immobilized cells. By this, the correlation between cell specific lactate productivity and specific growth rate results in a specific growth rate of µFB = 0.063 1/h for immobilized cells. This value is nearly one magnitude lower than the growth rate of free suspended cells.

Preliminary experiments in batch cultivation with suspended cells showed that the influence of a pH shift on maximum specific growth rate is negligible in the pH range from 4.6 to 6 (data not published). Therefore, the reason for the lower µFB could be diffusion limitations within the biofilm.

CONCLUSION

As described in the materials and methods section, the Multiferm has twelve single fixed-bed units that can be operated independently. Consequently, experiments can be performed simultaneously either with one times twelve, two times six or four times three fixed-beds with different options to accelerate the development of fixed-bed processes with immobilized cells. One option is to perfuse the units with different media, cultivating one strain in each for medium testing. Determination of the above mentioned productivities for biomass and product can also be carried out to find the best strain in a certain medium in case of mutant screening. Moreover, the influence of different dilution rates or carriers on the performance of fixed-bed cultivations can be investigated. For a better understanding of fixed-bed processes in general, the increase of immobilized biomass and the formation of biofilms can be studied by time course experiments. If this is done during the start-up process at certain time intervals before reaching constant productivity values, kinetic parameters could be used to create a model for fixed-bed processes. Especially for these kinetic studies, the Multiferm is superior to single experiments where growth related parameters change from one experiment to another. In case of aerobic strains, a conditioning vessel can be integrated to dissolve oxygen up to total saturation for sufficient oxygen supply of the cells. The downscaled design of the Multiferm leads to a cost-efficient process development. In this context, the enormous time reduction has to be mentioned. Regarding the first experiment described here, the cultivation could be reduced to 308 h in total compared to approximately 2000 h in single fixed-bed systems.

The Multiferm was successfully used for cultivation of immobilized Lactobacillus delbrueckii ssp. bulgaricus. Cultivations were reproducible and the generation of a relevant amount of data was fast and easy in this multiple reactor system. The investigation of the biomass within the fixed-bed indicated a change in growth rate of immobilized cells as also reported in literature for other immobilized LAB [3, 5].

The usage of a conditioning vessel would also allow the cultivation of aerobic mammalian or bacterial cells. Thus, the Multiferm can be used as a powerful tool for bioprocess development of fixed-bed processes.
