The red chicory (Cichorium intybus var. Chioggia) leaves by-products were collected by a local farmer in Legnaro (Padova, Italy), located in the Veneto region, and the Golden Delicious apple (Malus communis var. Golden Delicious), lemon, and pineapple were purchased from a local supermarket in the same location. All chemicals and solvents were of analytical grade and purchased from Sigma (Sigma Chemical Co., St. Louis, MO, USA).

Red chicory pinstripes (about 10 cm in length and 1 cm in width) were mixed with apple cubes of 1 cm per side. They were blanched (2 minutes at 75 °C) in water containing 0.2% w/v of citric acid and 0.2% w/v of ascorbic acid. Lemon juice was obtained by manually squeezing the fruits. Pineapple juice was extracted by cutting the fruits in two halves, eliminating the peel, and recovering the juice in a centrifugal juicer (Moulinex JU655, Group SEB, Ecully, France). Apple food-grade pectin and sugar were added at the concentration reported in Table 1. The jam obtained was stored for 6 weeks at 10 °C in glass containers.

After the centrifugation (2370 g at 4 °C for 10 min) of the sample, the a_w, the total solid soluble as Brix degrees, and the pH value were detected in the red chicory Jam Supernatant (JS) by using the Lab Master-aw instrument (Novasina AG, Lachen Switzerland) at 20 °C [16], the K71601 RM 45 digital refractometer (Optech) (AOAC 932.12) [17], and the potentiometer HI221 (Hanna) at 10 °C, respectively.

The colour (n = 3) of the jam along 6 weeks of storage was analysed weekly on a spectrophotometer (Minolta CM-508C). Before each series of measurements, the spectrophotometer was calibrated on a standard white tile, as reported by previous research [18]. The whole visible spectrum (400-700 nm) was recorded (∆λ = 2nm), and the illuminant was “natural light” D65/10°55,56. The results are expressed as L*(lightness, where 100 is a perfect reflecting diffuser and zero is black), a* (+a* is redness while –a* is greenness), b* (+b* is yellowness and –b* is blueness). Additionally, ∆E is the sum of the total changes, and it was calculated as follows: (∆L² +∆a² +∆b²)^1/2.

The total anthocyanin concentration in the JS was calculated at 535 nm, according to previous research [19], by using a calibration curve of cyanidin 3-glucoside and expressed in µmol/g. In addition, the JS was resuspended in a citrate-phosphate buffer solution (0.1 M citric acid and 0.2 M Na₂HPO₄) in order to assess the stability of the anthocyanins at pH values ranging from 3.0 to 7.0.

The TPC of the jam was determined as reported previously [20] and expressed as mg gallic acid equivalents/100g (mg GAE/100g). The TPC was monitored along 6 weeks of storage.

The polyphenols were evaluated according to the method previously reported [21] by using the HPLC Thermofinnigan Spectra System UV6000LP with detector Diode array in the 200 to 600nm range. The LC-18 Supelco-sil column was used at the following operating conditions [22]: the mobile phase was a mixture of water acidified with sulfuric acid (pH 2.5) and methanol at different elution gradients and flow rates, at 40°C, and with a run time of 100 min.

The carbohydrates were determined by using the same HPLC system reported before and an Aminex HPX87-C anion exchange column [23]. The mobile phase was deionised, using 0.22 µm of filtered water, with a flow of 0.6 mL/min, and the time of analysis was 40 minutes at 80°C. In both determinations, the analysis was made by injecting 20 µL filtered samples from both Jam Precipitate (JP) and JS resuspended in 1:2 distilled water.

In order to evaluate the overall acceptability of the chicory jam, a tasting test based on a consensus approach was used to allow further discussion on the jam samples. Ethical review and approval were waived for this study since the participation was voluntary. In addition, all data were anonymous.

The evaluation of the jam samples was performed in tasting booths, with controlled environmental conditions [24], by ten volunteers (students and personnel working at the laboratory, 6 females and 4 males within the age ranging from 22 to 55, media 30) identified as regular consumers of jams. Informed consent was obtained from all subjects involved in the study. The volunteers were instructed to define the descriptors “bitterness” and “colour” of the product. Based on these attributes, they were asked to determine the overall acceptability of the jam on a 5-point hedonic scale, where 1 corresponded to “completely refused” and 5 to “completely accepted.”

The data shows the mean ± standard deviation of three independent experiments (n = 3) by using one-way analysis of variance (ANOVA), followed by the post-hoc Bonferroni test (p < 0.05) in the Statgraphics Centurion XVI (StatPoint Inc., Rockville, MD, USA) software.

The a_w, total solid soluble, and pH values of the jam are 0.91 ± 0.02, 3.61 ± 0.06, and 46.3 ± 0.03 Brix degrees, respectively. These data are in agreement with the values found in jams obtained from other by-products [25]. At the pH from this study (3.61 ± 0.06), the activity of polyphenol oxidase, which is involved in enzymatic browning and phenols nutritional value loss, slows down [21]. In addition, according to Fig. (1), the highest absorbance of anthocyanins was reported at pH 3.0, with these molecules being more stable at that value. Low pH amounts are related to a high extraction yield of bioactive compounds such as anthocyanins [19]. Therefore, the jam from this study has preserved the concentration of this bioactive compound, which was 1.25 µmol/g. The presence of ascorbic acid has an influence on the stability of anthocyanins [26]. Therefore, the presence of lemon juice in the jam may contribute in this regard. Anthocyanins have been responsible for the high antioxidant activity found previously in red chicory [27]. Several glycosylated forms of cyanidin (representing the main fractions of anthocyanins), such as cyanidin-3-malonyglucoside (177.3 µg/g) and cyanidin-3-O-glucoside (14.4 µg/g), were previously found in the red chicory variety Chioggia [13].

Table 2 shows the variation of different colour parameters along the time of the jam storage. There was a small increase in L* (p > 0.05), with the jam being lighter after 6 weeks than at T0, which is consistent with a previous report indicating that storage increases lightness [28]. In addition, the change in L* values has been related to the change in the jam consistency during processing [26]. A lighter colour could represent a loss of redness due to the degradation of the bioactive compounds during the jam processing since some of them are sensitive to heat [28]. However, the redness from this study was improved by 3.34%, as the a* value has increased (p > 0.05) after the sixth week. The presence and stability of anthocyanins and other phenols from the red chicory and the rest of the ingredients could impact the preservation of the redness, as mentioned in previous research [29]. Moreover, the initial values of a* and b* were similar to the ones reported previously in another jam from an underutilized fruit [30]. Regarding the ∆E (distance between two colours), this was not visually perceptible since a value of 1.42 was found, according to the literature [18].

Polyphenols were other bioactive compounds detected at the end of the jam processing before the storage (T₀). Six substances were detected (Table 3), and epigallocatechin-gallate had the highest concentration (23.78 ± 0.49 mg/L) of all the phenols assessed. Catechin, epicatechin, and epigallocatechin-gallate have been previously detected in red chicory (9). On the other hand, the content of chlorogenic acid (75.71 ± 0.73 mg/L) could be related to the presence of this phenolic acid in Chioggia red chicory variety [31], whose concentration in this plant is interesting for human food fortification [9]. Hypoglycaemic and hypolipidemic properties in chicory have been previously associated with the content of chlorogenic acid [32], while phenols are related to being suitable as diabetes and obesity modulators [33]. Besides red chicory, apples can contribute to the TPC since they have been reported to present epicatechins and catechins [34]. This finding could be of great interest from the nutritional point of view since those compounds are considered natural inhibitors of the enzyme α-glucosidase, which is involved in carbohydrate dysmetabolism [35]. The amount of phenolic compounds was reported to remain unchanged during the jam processing, preserving the bioactivity in the final product [36]. The TPC reported at T₀ was 719.27 ± 39.94 mg GAE/100 g, while a significant decrease (p < 0.05) of the content of TPC was observed in the first four weeks of storage of the jam (Fig. 2). The reduction in the TPC could be explained by their function as protein glycation inhibitors and scavengers of dicarbonyls [37, 38]. In addition, the polymerization of phenols could be another explanation for the decrease in their concentration, resulting in high molecular and insoluble polymers [39]. In the following time, the polyphenols did not show a considerable reduction, and after six weeks of storage, the TPC obtained the lowest concentration (492.75 ± 30.18 mg GAE/100 g), in comparison to T₀ (p < 0.05). However, this value was higher than the values reported in grape (449.2 mg GAE/100g), ground raisin (274.9 mg GAE/100 g), bilberry (450 mg GAE/100 g), and bilimbi (23.65 mg GAE/100 g) jams [30, 40, 41] in previous research. In addition, even the TPC at the end of the storage time was higher than the range previously found in chicory leaves from several varieties [7].

Regarding the content of carbohydrates in the jam (Table 4), sucrose has obtained the highest value (31.80%) of the total sugars evaluated. This compound was added during the jam processing, and it is important for the pectin gelation [42], which could also be related to the high content of calcium of the chicory leaves, according to the literature (292.61 mg/100 g) [5]. Conversely, lower concentrations of sucrose have been reported in red chicory leaves (2.6-11.1%), where fructose and glucose are the main carbohydrates found, even in higher amounts than in other parts of the plant such as roots, seeds, and peel [9]. On the other hand, fructose and glucose have reached 4.6 and 4.4% of the jam, respectively, and the sum of the simple total sugars found in the jam (40.8%) is lower than those registered in the majority of commercial jams [43].

The content of inulin detected in the jam was about 0.4% of the carbohydrates assessed. This content is in the range reported in chicory leaves [5]. Inulin has been recognized to present functional properties such as cholesterol-reducing ability [44], and it presents prebiotic characteristics since it resists digestion in the upper digestive tract, being hydrolysed and then fermented by colonic bacteria [45]. Moreover, the jam from this study reached 1.16% of total dietary fibre, based on the Nutrisurvey software [46]. According to the European Union legislation, the food label can mention “source of fibre” or “high fibre” if it contains at least 3 or 6 g of dietary fibre/100 g of product, respectively [47]. Despite the fact that the values found in the jam are low, according to the current legislation, supplementation with other inulin and fibre sources could be suggested in order to increase the concentration of this compound.

Fig. (1). Absorbance of anthocyanins at 535 nm related to pH values (n = 3). Different letters in the figure indicate statistically significant differences (p < 0.05), according to ANOVA (one-way) and the Bonferroni test.

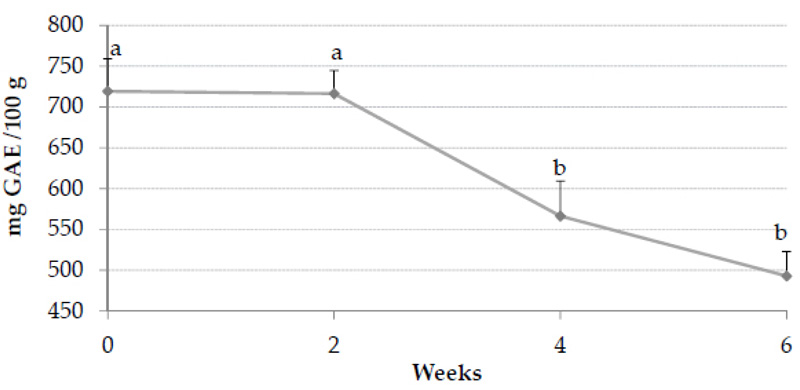

Fig. (2). Changes in the total phenolic content during 6 weeks of storage. Different letters in the figure indicate statistically significant differences (p < 0.05), according to ANOVA (one-way) and the Bonferroni test.

On the other hand, as far as we know, the supplementation of inulin has never been considered in jams before. Regarding the fibre added to the jam, the supplementation with inulin extracted from chicory roots could be suggested, as reported in a previous study in the elaboration of yoghurt [48]. Furthermore, promising by-products have already been employed to enrich food products in dietary fibre content, such as the water-extraction residue from maize milling as well as β-glucan fractions from barley and mushroom [49, 50].

The bitter taste of phytochemical compounds or phytonutrients, such as antioxidants, is considered the main cause of the rejection of vegetables and their derivatives by consumers [51]. For this reason, the food industry and the breeders usually try to decrease the content of bitterness and thus healthy substances from their products [52]. In this context, chicory species represent a peculiar case since they are well-known for their mild bitter taste, which is usually appreciated by consumers [53]. In the case of raw chicory, bitter notes are attributed mainly to sesquiterpene lactones [54]. The specific bioactivity of these substances is related to their capacity to activate taste bitter receptors type 2 (TAS2R) family present in the mouth [55]. The chicory jam received an overall good acceptability judgment (about 4 on a scale from 0 to 5) from the volunteers (Table 5).

This fact may be related to the jam inulin content since this compound has been used in previous research to improve the sensory properties in a different food matrix [56, 57]. Moreover, in the evaluation of these preliminary results, it must be taken into account that within the chicory jam preparation, the cooking procedure, and the addition of sugar have partially hidden the original bitter taste of the raw vegetable, whose persistent bitterness [58] could be functional in subjects with dysphagia problems. A specific therapeutic program (called deep pharyngeal neuromuscular stimulation) based on the use of thickening lemon juice has been used to improve pharyngeal swallowing, and it is demonstrated that the stimulation of the taste buds of bitter and base of tongue improve tongue retraction [15].
